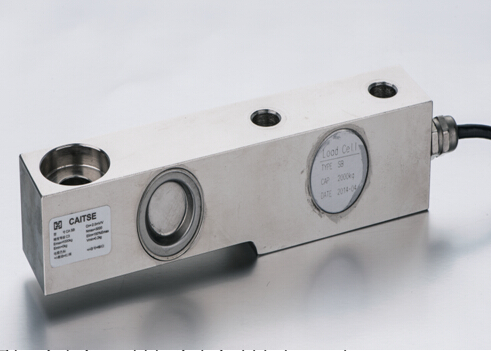

主要特點Features
● Single ended shear beam loadcell
● Senior alloysteel
● High accuracy
● High stability
● Unique “blind” loading hole
● Easy toinstall
● Protectedagainst corrosion by nickelplated treatment
● Suitable forfloor scales, blending & mixing systems and batching systems, etc.
● 懸臂梁式
● 優質合金鋼材質
● 高精度
● 高穩定性
● 獨特的承載盲孔設計
● 安裝簡便、快速
● 表層鍍鎳防腐處理
● 適用于平臺秤、攪拌站和配料秤等
技術參數Specification
|
Rated capacities(Emax)
|
額定載荷
|
0.3、0.5、1、2、3、5、7.5、8、10、15、20、25t
|
|
Rated Output
|
額定輸出
|
2.0 ±0.002 mV/V
|
|
Zero Balance
|
零點平衡
|
±1% of rated output
|
|
Creep after 30 minutes
|
蠕變
|
±0.03% of rated output
|
|
Total error
|
綜合誤差
|
±0.03% of rated output
|
|
Hysteresis
|
滯后
|
±0.03% of rated output
|
|
Repeatability
|
重復性
|
±0.03% of rated output
|
|
Temp. effect on output
|
靈敏度溫漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零點溫漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用溫度范圍
|
-20oC to + 70oC
|
|
Temp. Compensated
|
溫度補償范圍
|
-20oC to + 40oC
|
|
Safe Overload
|
安全載荷
|
150%
|
|
Input Impedance
|
輸入阻抗
|
400 ohm ± 10 ohm
|
|
Output Impedance
|
輸出阻抗
|
352 ohm ± 3 ohm
|
|
Insulation Resistance
|
絕緣阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推薦激勵電壓
|
10V DC/AC
|
|
Maximum Excitation
|
最大激勵電壓
|
15V DC/AC
|
|
Cable Length
|
導線長度
|
3m
|
|
Cable Color Code
|
導線顏色
|
Red(+E) Black(-E) Green(+S) White(-S)
|

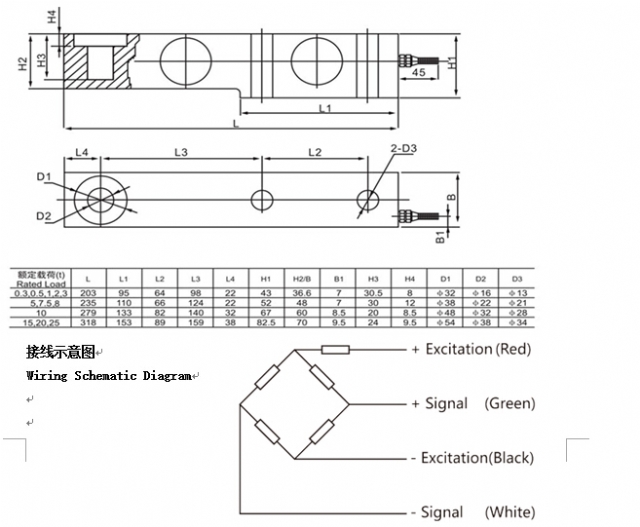

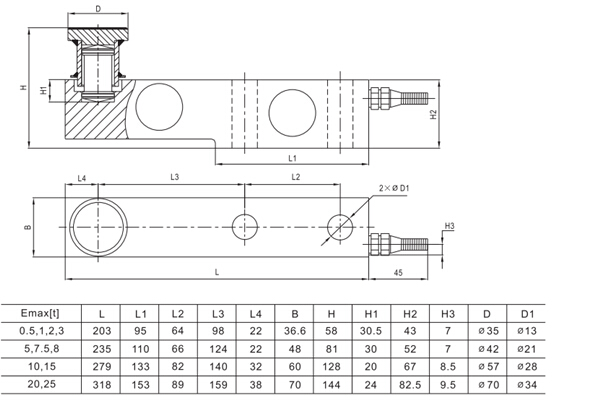

DH-SB總裝圖A General assembly drawing A
