產品名稱：DBSL-10t傳感器 transcell DBSL-10t稱重傳感器
產品品牌：美國傳力/transcell稱重傳感器
產品型號：DBSL-3t,DBSL-5t,DBSL-10t,DBSL-20t,DBSL-30t
產品類型：輪輻式傳感器|輪輻式稱重傳感器

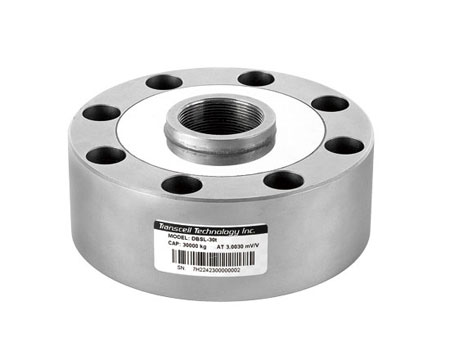

Transcell DBSL 輪輻式稱重傳感器
產品描述：輪輻式傳感器；優質合金鋼材質；高精度；高穩定性；低外形；安裝簡便、快速；表層鍍鎳防腐處理；適用于試驗機、汽車衡和大型料斗秤等；
主要特點
● 輪輻式傳感器
● 優質合金鋼材質
● 高精度
● 高穩定性
● 低外形
● 安裝簡便、快速
● 表層鍍鎳防腐處理
● 適用于試驗機、汽車衡和大型料斗秤等
量程
● 1t, 2t, 3t, 5t, 10t, 20t, 30t
● Larger capacities are also provided(可定制更大量程)
技術參數
●
|
Rated Output
|
額定輸出
|
3.0mV/V ±0.25%
|
|
Zero Balance
|
零點平衡
|
±1% of rated output
|
|
Creep after 30 minutes
|
蠕變
|
±0.03% of rated output
|
|
Nonlinearity
|
非線性
|
±0.03% of rated output
|
|
Hysteresis
|
滯后
|
±0.03% of rated output
|
|
Repeatability
|
重復性
|
±0.03% of rated output
|
|
Temp. effect on output
|
靈敏度溫漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零點溫漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用溫度范圍
|
-10oC to + 70oC
|
|
Temp. Compensated
|
溫度補償范圍
|
-10oC to + 40oC
|
|
Safe Overload
|
安全載荷
|
150%
|
|
Input Impedance
|
輸入阻抗
|
775 ohm ± 20 ohm / 387 ohm ± 20 ohm (≤20t)
|
|
Output Impedance
|
輸出阻抗
|
700 ohm ± 5 ohm / 350 ohm ± 5 ohm (≤20t)
|
|
Insulation Resistance
|
絕緣阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推薦激勵電壓
|
10V DC/AC
|
|
Maximum Excitation
|
最大激勵電壓
|
15V DC/AC
|
|
Cable Length
|
導線長度
|
600cm / 1000cm
|
|
Cable Color Code
|
導線顏色
|
Red(+E) Black(-E) Green(+S) White(-S)
|
