產品名稱： BAB-50KG傳感器 transcell BAB-50KG稱重傳感器
產品品牌：美國傳力/transcell稱重傳感器
產品型號：Transcell BAB S型稱重傳感器
產品類型：S型傳感器 S型稱重傳感器

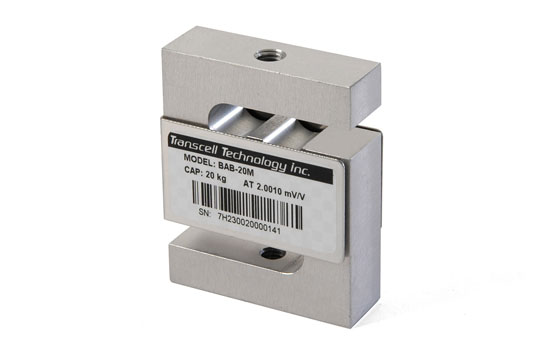

Transcell BAB S型傳感器
主要特點
S型傳感器
優質鋁合金材質
安裝簡便、快速 ,穩定可靠
適用于材料試驗機、配料秤、機電結合秤和包裝秤
Transcell BAB S型稱重傳感器量程
2kg, 5kg, 7.5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg
Transcell BAB S型稱重傳感器技術參數
●
|
Rated Output
|
額定輸出
|
2.0mV/V ±1%
|
|
Zero Balance
|
零點平衡
|
±3% of rated output
|
|
Creep after 30 minutes
|
蠕變
|
±0.03% of rated output
|
|
Nonlinearity
|
非線性
|
±0.03% of rated output
|
|
Hysteresis
|
滯后
|
±0.03% of rated output
|
|
Repeatability
|
重復性
|
±0.03% of rated output
|
|
Temp. effect on output
|
靈敏度溫漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零點溫漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用溫度范圍
|
-10oC to + 70oC
|
|
Temp. Compensated
|
溫度補償范圍
|
-10oC to + 40oC
|
|
Safe Overload
|
安全載荷
|
150%
|
|
Input Impedance
|
輸入阻抗
|
410 ohm ± 5 ohm
|
|
Output Impedance
|
輸出阻抗
|
350 ohm ± 3 ohm
|
|
Insulation Resistance
|
絕緣阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推薦激勵電壓
|
10V DC/AC
|
|
Maximum Excitation
|
最大激勵電壓
|
15V DC/AC
|
|
Cable Length
|
導線長度
|
2.75m
|
|
Cable Color Code
|
導線顏色
|
Red(+E) Black(-E) Green(+S) White(-S)
|
|
