特點與用途/Features & Applications

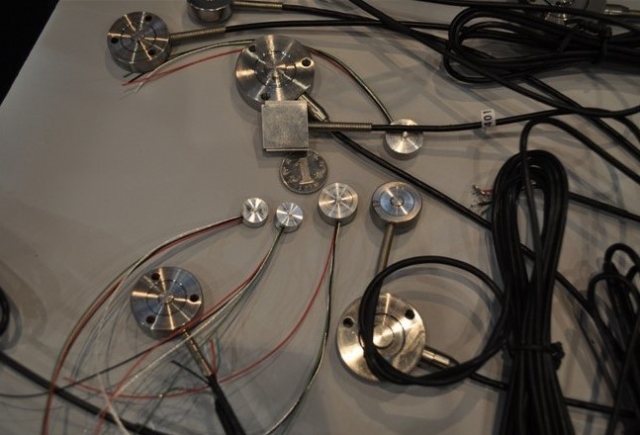

l 微型傳感器，外形小巧
l 不銹鋼或鋁合金材料
l 可定制、防護等級：IP66
l 適用于各種小空間的測力，廣泛應用于工業、研發等領域的測量和控制
l Miniature load cell，Lowprofile
l Made of stainless steel or Aluminum ally
l Customizabble,IP66 protection
l Suitable for force measurement in limited spaces.Widely used for industrialmeasurement and control， R&D and other applications
|
參數
|
Specifications
|
技術指標/Technique
|
|
額定容量
|
Capacity
|
30,50,100,200,300,500N
1000 N
|
|
輸出靈敏度
|
Rated output
|
1.0±20%mV/V
|
|
零點輸出
|
Zero balance
|
±2%F.S.
|
|
非線性
|
Non-linearity
|
0.5%F.S.
|
|
滯后
|
Hysteresis
|
0.3%F.S.
|
|
重復性
|
Repeatability
|
0.3%F.S.
|
|
蠕變（30min）
|
Creep(30min)
|
0.2%F.S.
|
|
溫度靈敏度漂移
|
Temp.effect on output
|
0.05%F.S./10℃
|
|
零點溫度漂移
|
Temp.effect on zero
|
0.05%F.S./10℃
|
|
輸入電阻
|
Input impedance
|
350±5Ω
|
|
輸出電阻
|
Output impedance
|
350±5Ω
|
|
絕緣電阻
|
Insulation
|
≥5000MΩ/100VDC
|
|
激勵電壓
|
Recommended excitation
|
5V
|
|
最大激勵電壓
|
Maximum excitation
|
10V
|
|
溫度補償范圍
|
Compensated temp range
|
-10~60℃
|
|
工作溫度范圍
|
Operation temp range
|
-20~80℃
|
|
安全超載
|
Safe overload
|
120%F.S.
|
|
極限超載
|
Ultimate overload
|
150%F.S.
|
|
電纜線尺寸
|
Cable size
|
φ1.3×1500mm
|
|
防護等級
|
IP Class
|
IP66
|
安裝尺寸/Mounting Dimension
